Model 3603 Triple-Output HV Power Supply: −0.5 to −30kV @ 300μA

Model 3603 Triple-Output HV Power Supply: −0.5 to −30kV @ 300μA

Triple output high voltage power supply: −0.5 to −30kV @ 300 μA, 0 to +5 V @ 0 to 3 A floating, 0 to −2 kV @ 200 μA floating

Features:
• Three outputs: −30 kV 330 μA, floating −1 kV 25 μA and 5 VDC 3 A
• Compact enclosure
• Interlock input and status LEDs
• Federal Standard output connector
• RS-232 remote control
• Demo software with source code
• Ideal for electron microscopes and similar applications

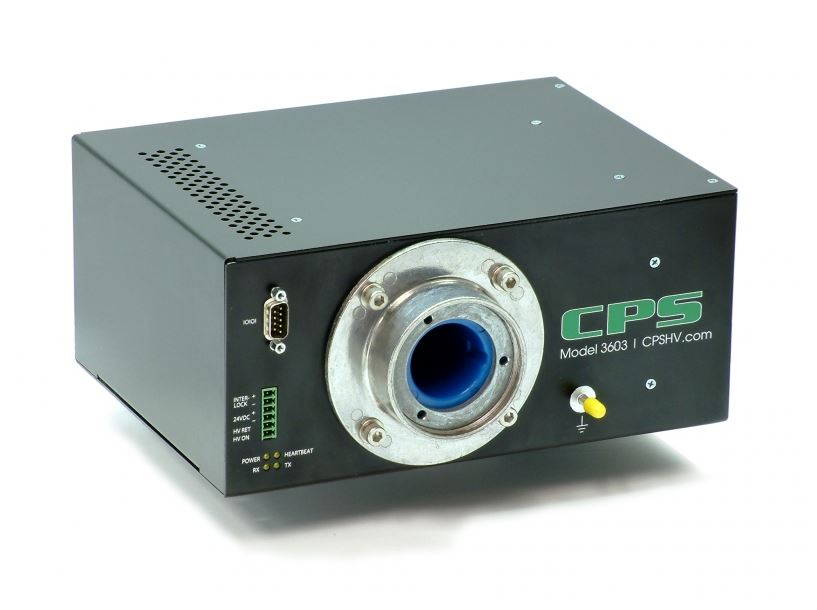

Model 3603 contains three common high voltage power supplies used by scanning electron microscopes (SEM) within a compact 25 × 15 × 20 cm enclosure. The filament and bias voltages float on the accelerator voltage; all three are remotely programmable via the RS-232 data port. Connection to a SEM occurs through a conventional 3-pin Federal Standard connector. A plug-in terminal block connects 24 VDC input power, an external safety interlock, and a ″HV On″ status bit.
