Packaging Verification System Data Pro 6

Packaging Verification System Data Pro 6

Multi-Camera Industrial High Performer

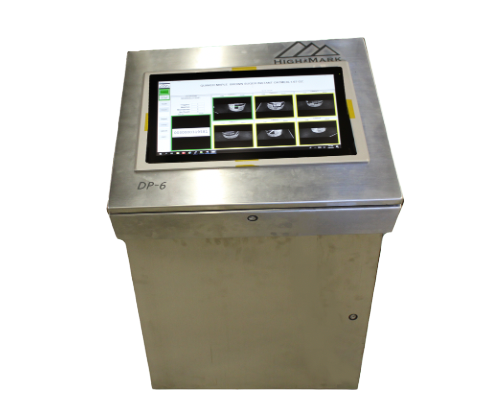

The Data Pro 6 is a full-standing model that’s about 4′ tall. Additionally, as the most advanced and feature-rich scanner, it offers a wide array of customizability and functions to meet a variety of production needs. The Data Pro 6 is our finest model that with 6 separate cameras allows for full 360° scanning of intricately shaped objects. As with all our other scanners, it also has a force rejection system, and with its visual on-screen indicators, missed bar-code reads and defective items are easily identifiable.
SPECIFICATIONS FOR DATA PRO 6
Inspection Speed - Single Inspection up to 1000/min
Eclosure - 304SS
- IP65
- 14”x14”x8”w/ sloped top
Operator Interface - 10.1”Touch LCD
- Resolution 1280X800
Teach Method - Manual Button
- Ethernet String
- Database Selection
Communications - Ethernet - 3 10/100 ports
Power Supply - 100-240VAC, 50/60 HZ, 24VDC, 120W
Inputs - Trigger 10-24VDC selectable (NPN/PNP)
- Encoder: 10-24VDC (OC + PP)
- RFID or ID badge scan input for security
Outputs - Stack light (4) 24VDC NPN Signals
- Machine relay interface, 4A 125VAC with (2A 24VDC) dry contact
- Reject mechanism interface, 4A 125VAC with (2A 24VDC) dry contact
- Auxiliary interface, 4A 125VAC (2A 24VDC) dry contact
- Positive data detection per trigger – detects faulty scanners by confirming that data was received.
Electronics - Solid state surface mount circuit board
ID/MV Device Interface - (1) 24VDC AUTO ID or Vision device serial connection-single controller
- Supports OMRON/Microscan
- (1-2) 24VDC Devices with ETHERNET
- ID 40-MV40
- MV 4000
Approvals/Listings - UL Listed Industrial Control Panel
Display Features - Current code
- Last code
- History Report
- Camera images in real-time
- Store images in memory
- Export to Excel/Text file
