Packaging Verification System Data Pro Lite

Packaging Verification System Data Pro Lite

Fully featured for a single camera auto ID interface

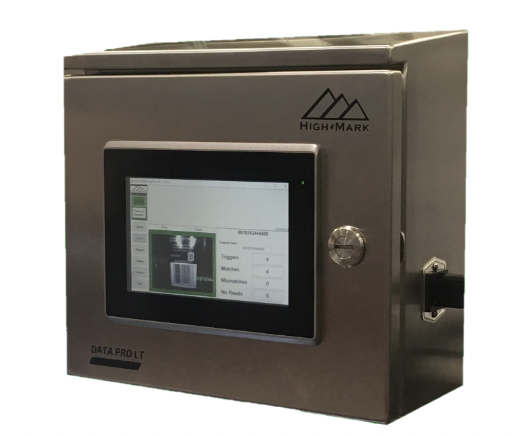

The High-Mark Data Pro Lite is an advanced packaging verification system designed for user experience and customizability. With its 7″ camera image display, users can see exactly how and where the data is being captured, allowing for precise information management. With positive data detection per trigger, the Data Pro LT can detect faulty scanners, generate alerts, and make sure not even a single scan is ever missed on the product line.

SPECIFICATIONS FOR DATA PRO LITE
Inspection Speed - Single Inspection up to 1000/min
Eclosure - 304SS
- IP65
-12”x 11.25”x 5.5”w/ sloped top
Operator Interface - 7” Touch LCD
- Resolution 800X480
Teach Method - Manual Button
- Ethernet String
- Database Selection
Communications - Ethernet - 2 10/100 ports
Power Supply - 100-240VAC, 50/60 HZ, 24VDC, 90W
Inputs - Trigger 10-24VDC selectable (NPN/PNP)
- Encoder: 10-24VDC (OC + PP)
- RFID or ID badge scan input for security
Outputs - Stack light (4) 24VDC NPN signals - Machine relay interface, 4A 125VAC (2A 24VDC) dry contact
- Reject mechanism interface, 4A 125VAC (2A 24VDC) dry contact
- Auxiliary interface, 4A 125VAC (2A 24VDC) dry contact
- Positive data detection per trigger – detects faulty scanners by confirming that the data was received
Electronics - Solid state surface mount circuit board
ID/MV Device Interface - (1) 24VDC AUTO ID devices with ETHERNET
- Supports OMRON/Microscan ID 40
Approvals/Listings - UL Listed Industrial Control Panel
Display Features - Current code
- Last code
- History Report
- Camera images in real-time
- Store images in memory
- Export to Excel/Text file
