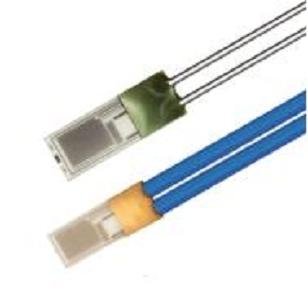

Thin Film Platinum RTD Temperature Sensor (Click to enlarge image) IST thin film platinum temperature sensors provide solutions for extreme temperature applications. IST thin film products are designed with the highest quality materials, allowing them to operate within a temperature range of -200°C to +1000°C. Standard DIN 60751 sensors are offered in class B (0.12%), class A (0.06%), 1/3 class B (0.04%), and higher accuracies upon request.

IST sensors are available in SMD and wired configurations, and in sizes ranging from 0.8mm (W) x 1.2mm (L) to 2mm (W) x 10mm (L). Standard sensors can be customized with a variety of wire material, length, and configurations with user defined attributes such as nominal resistance, TCR value, and tolerance class.

Direct Wire-Wound Replacement
IST offers a series of thin film platinum temperature sensors that directly replace wire-wound platinum temperature sensors. IST’s thin film sensors combine the features of traditional wire wound platinum sensors such as accuracy, long-term stability, repeatability, interchangeability, and wide temperature range, while providing additional features such as robustness, higher resolution, shorter response times, and an improved price/performance ratio.
