Extrusion Dies & Sizing Plates Manufacturing

Extrusion Dies & Sizing Plates Manufacturing

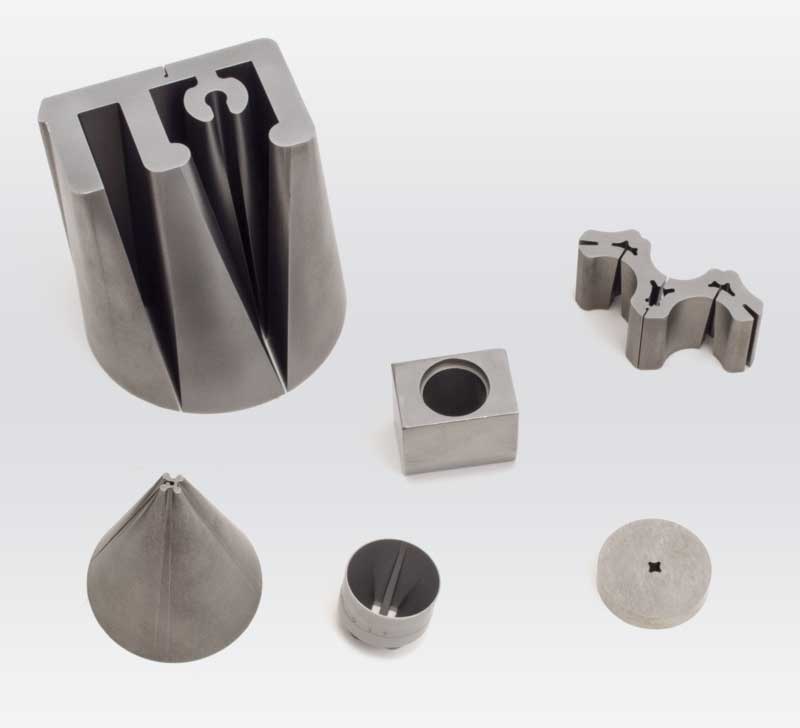

4-axis Wire EDM can be used to machine geometries consisting of two different shapes on parallel planes connected by a ruled surface. This is helpful for metal and plastic extrusion dies. Food processing nozzles can also be made using this capability. Any industry needing a tapered cut can benefit from this independent UV cutting.

One of the challenges extrusion producers face is developing the tooling required for a specific application. At XACT Wire EDM we are extrusion die manufacturers who are very familiar with the extrusion industry and the tooling needed to produce these types of complex parts, including aluminum, plastic and silicone extrusion tooling.

We manufacture high-precision extrusion dies and tooling using advanced 4-axis wire EDM cutting to support your aluminum, plastic, and silicone extrusion applications. We produce solid dies, hollow dies, die rings, and bolster/sub-bolster plates held in tool carriers to meet your specific tooling requirements. We use our high-end wire EDM machines to achieve tight tolerances around +/- 0.0005" with high-precision tapers to ensure consistent, accurate extrusion performance. We apply our deep experience with the extrusion industry and complex part geometries to meet and exceed your most demanding extrusion die specifications. We also provide free extrusion die cost estimates and personalized support so you can confidently plan and execute your next extrusion project.
