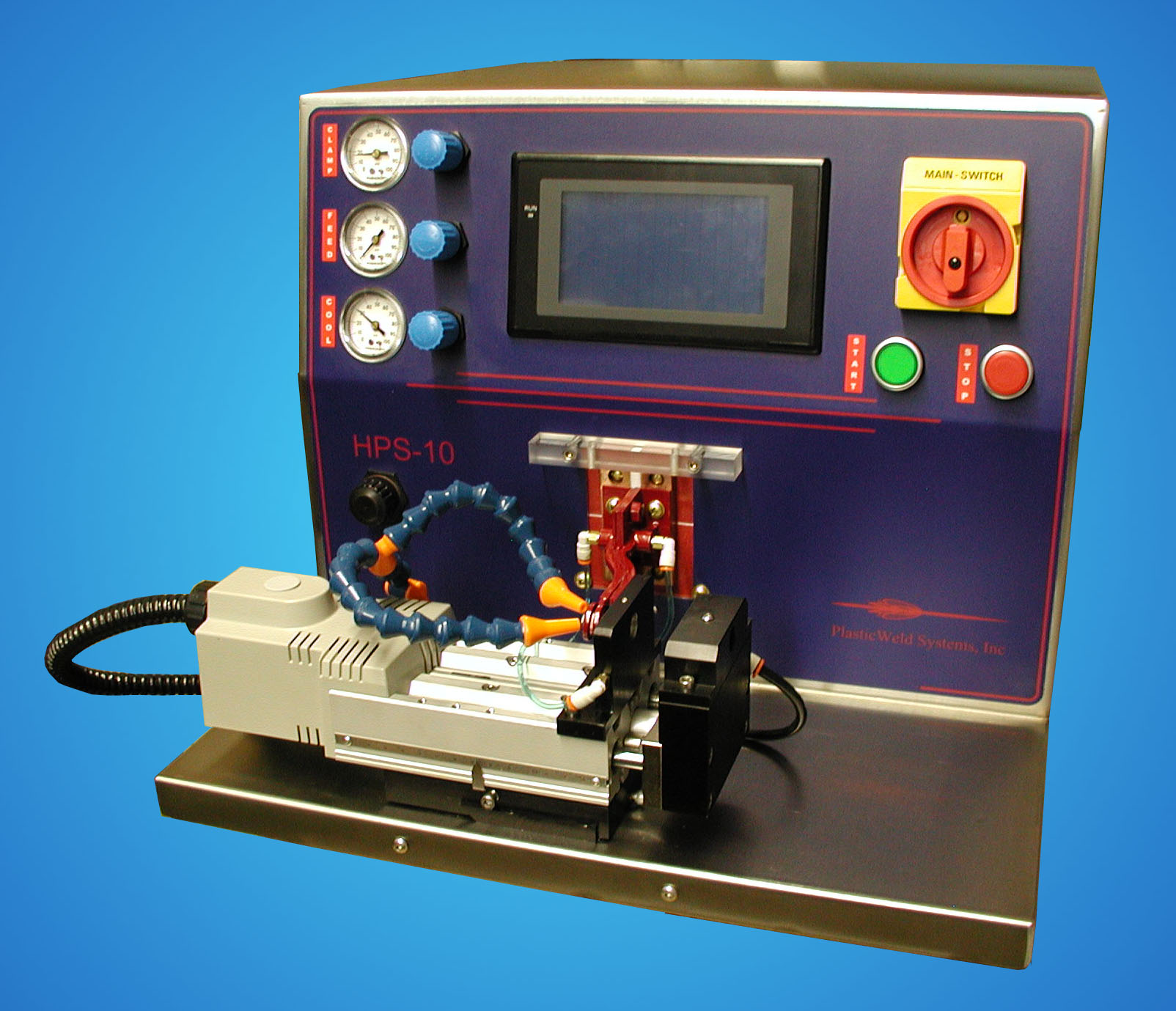

HPS-10 Single Electric

HPS-10 Single Electric

PlasticWelds workhorse HPS-10 tip forming system has become the mainstay at many of the largest OEMs' production facilities. Long recognized for exceptional reliability and repeatability, the HPS-10 is configurable with a wide range of options.

FEATURES INCLUDE:
 Programmable electric slide provides precise speed and distance control of tube feed
 Collet clamping of tubes, adjustable clamp pressure.
 PLC and Color Touch-screen Operator Interface control all mechanical functions and provide program storage.
 0-100% step-less power, heat On/Off and diagnostic functions are all controlled through the Operator Interface Panel.
 Programmable multi-level heating cycles.
 Constant current control within 0.5% of a 10% line voltage variation.
 Load matching transformer & capacitors.
 Easy clean Stainless Steel Cabinet with integrated work platform.
 Precision pneumatic regulators.
 Water cooled coil and tool holder.
 Refrigerated air cooling of dies.
 Simple adjustment for correct coil placement.
 Cycle initiation by panel push button or foot pedal switch.
