HPS-DB

HPS-DB

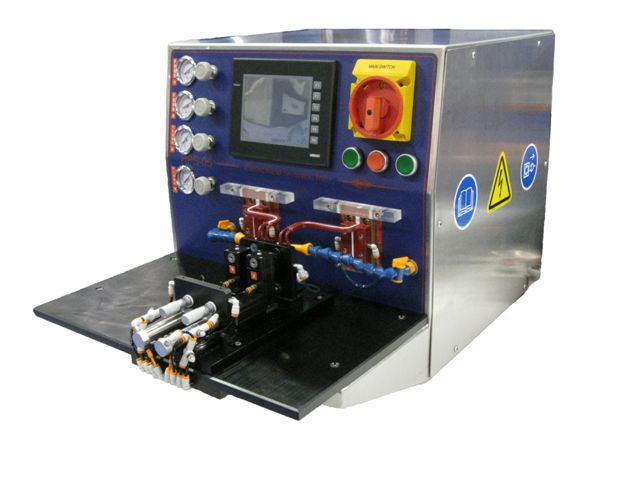

The HPS-05 double independent dual coil tip forming system utilizes two individually controlled power supplies paired with individually controlled pneumatic actuators. The result is a system that enables you to independently fine tune every critical process parameter for each tipping fixture. As an added bonus, the machine is programmed to enable operation in either a 1-up or 2-up configuration. In fact, two different products could be produced during the same cycle – enabling new levels of adaptability for lean production work cells.


FEATURES INCLUDE:
 Dual power supplies run concurrently, yet independently control their respective induction coil to provide the maximum level of adjustability in a high-capacity production configuration.
 High precision pneumatic regulators independently control precision pneumatic actuators.
 Collet clamping of tubes, adjustable clamp pressure.
 PLC and Color Touch-screen Operator Interface control all mechanical functions and provide program storage.
 0-100% step-less power, heat On/Off and diagnostic functions are all controlled through the Operator Interface Panel.
 Programmable multi-level heating cycles for both power supplies.
 Easy clean Stainless Steel Cabinet with integrated work platform.
 Cycle initiation by panel push button or foot pedal switch.
 PlasticWeld Systems RF Transistorized Solid State induction heating unit
 PWS standard program. Customized programming available.
