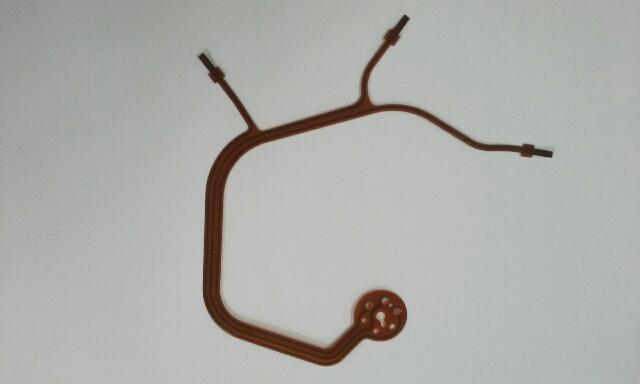

Medical Flexible Circuitry
Available from Fralock
Fralock’s Flexible Circuitry specializes in high reliability flex and rigid-flex circuits for Medical Device, , Diagnostic Ultrasound, Telecommunications and Patient Monitoring applications. Manufacturing capabilities include: Adhesiveless construction for thinner and more flexible circuits, Additive processing for higher density circuits. Trace and space capabilities down to .0015″ in production, Microvia sizes down to .001″ diameter for high density flex circuits, Selective plating enables multiple attachment methods on the same flexible circuit, Alternate circuit layer materials such as beryllium copper, stainless steel and cupronickel can be used for optimum performance in unique applications.
Medical Flex and Rigid-Flex circuit applications require that the design provides the utmost in reliability. Unique combinations of electrical requirements, mechanical bend requirements, and in some cases medical operating environments, require careful and thorough design review.
