Cut to Length FG Series

Product Details

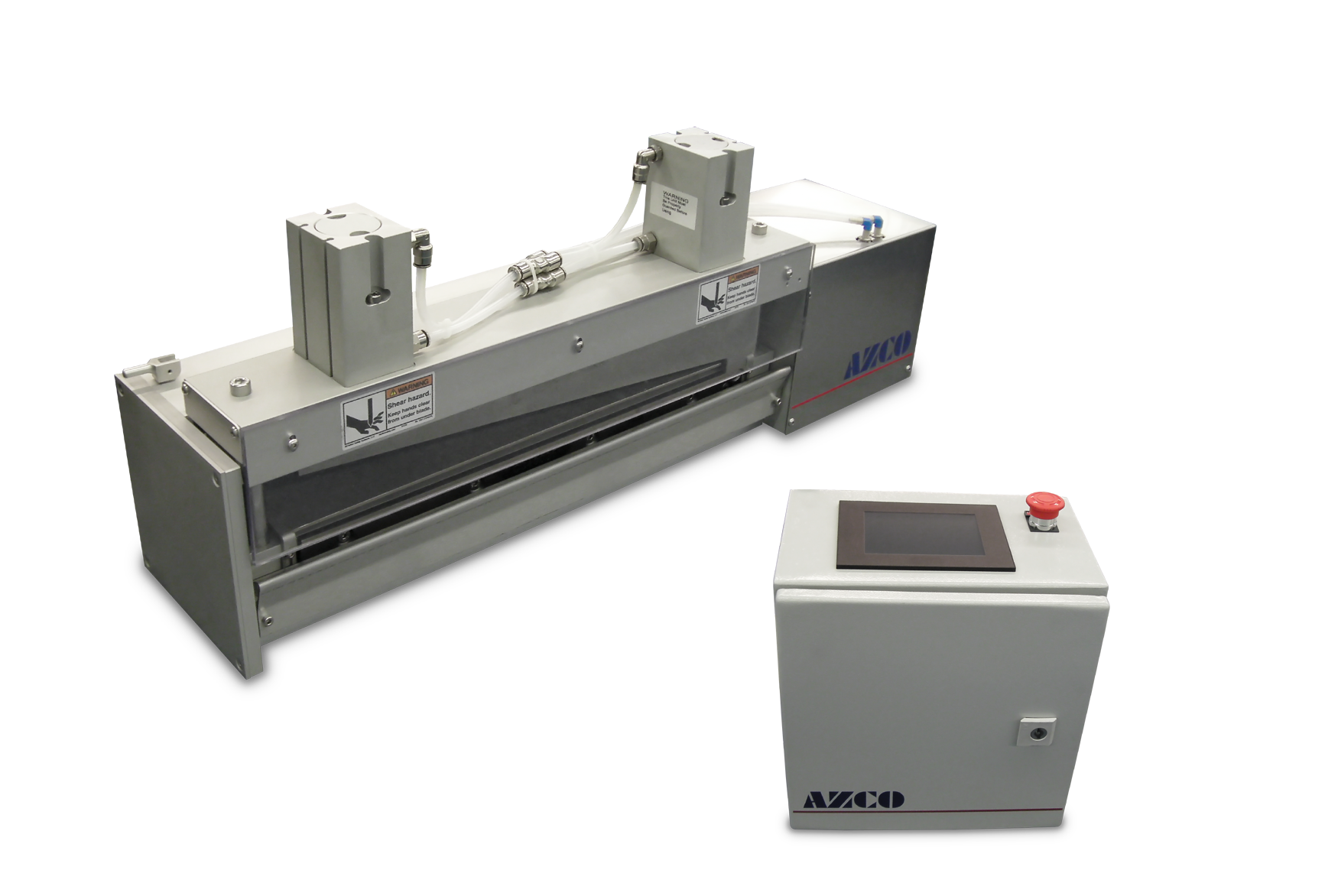

These cut to length units are simple and easy to use. Just enter the length and quantity on the color touch screen. The unit automatically feeds, cuts, and counts the pieces to meet your requirements.

For an automated one-shot process, this unit will feed and cut the material on-demand. Clean cuts are provided by the guillotine knife assembly.

This integrated unit is a convenient package for many users who just want to plug in a power cord and air line to start cutting their product.

SPECIFICATIONS
Minimum length: 0.1mm/0.005"
Maximum quantity count: 999,999
Power requirements: 110 v ac to 220 v ac
30-90 psi (2-6 bar) compressed air
Accuracy: +/-0.38mm/0.015" or 0.1% of cut length (whichever is larger)

MATERIALS
Absorbent pads, film, foam, mesh, nonwovens, pads, paper, personal care products, rubber, shrink tubing, tape, test strips, tubing.

BENEFITS TO YOU
~ Easy to use as a stand-alone unit or as an in-line component
~ Easy operator interface with color touchscreen
~ Enter lengths in either inches or metric
~ Modular knife cartridge
~ On demand one-shot cuts
~ Reduced scrap
~ Eliminates the need for a large inventory of cut product
