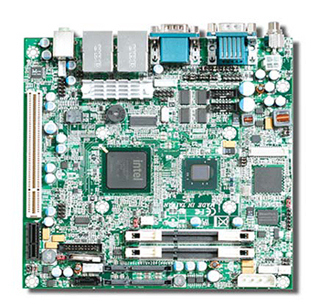

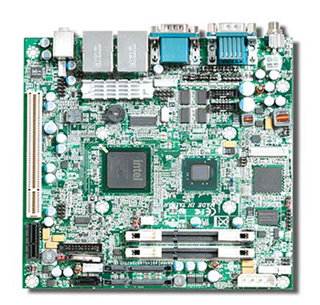

WADE-8075 Intel Dual-core Atom D525 Processor-based Mini-ITX Embedded Board

Portwell’s WADE-8075 is an Intel Atom D525 dual-core 1.8GHz processor-based Mini-ITX embedded system board with built-in DC 12V input. Two 204-pin SODIMMs support single-channel DDR3 memory up to 4GB. WADE-8075 includes VGA and 24-bit LVDS dual display and dual Gigabyte Ethernet, one expansion PCI-E slot, one PCI slot and one Mini PCI socket with USB and PCI-E x1 signal. MIO includes three RS-232 ports and one RS-232/422/485 port.

The WADE-8075 provides customers with greater expansion availability through the PCI, PCI-E x1 and Mini PCIe slots. In fact, the Mini PCIe slot with USB and PCI-E x1 signals presents customers with the flexibility to use a variety of Mini PCIe modules such as Wi-Fi, TV Tuner, video capture and 3.5G.

WADE-8075 is ideal for applications such as point-of-sale (POS), medical, digital signage, kiosks and surveillance security monitoring.
