NANO-8050

Product Details

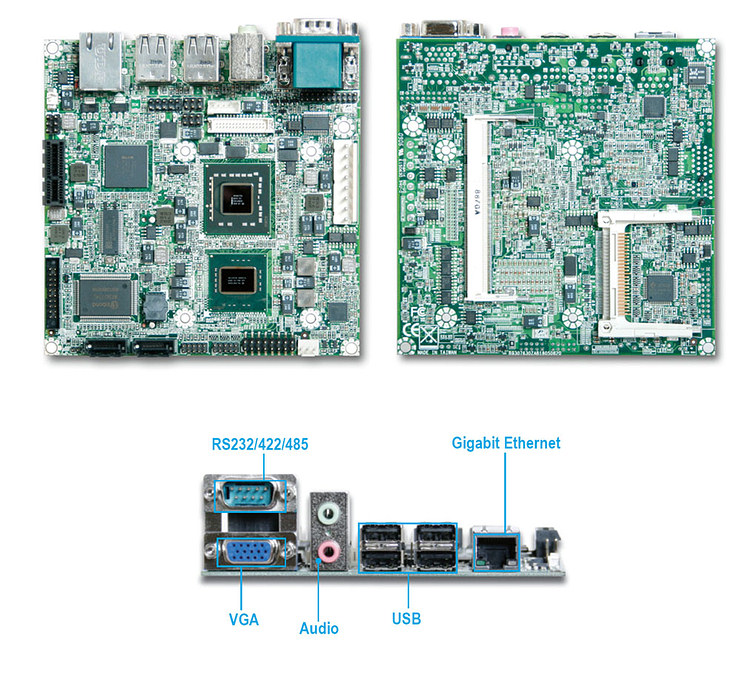

NANO-8050 Intel Core 2 Duo Processor based Compact Nano-ITX Embedded Board

Portwell NANO-8050 features Intel GS45 Express chipset integrated with a built-in GMA 4500MHD graphic engine to provide excellent 3D graphics performance and supports Intel Ultra Low Voltage (ULV) Core™ 2 Duo and Celeron® M processors. The NANO-8050 also features one 200-pin SO-DIMM that supports DDR2 SDRAM up to 4GB; dual independent display via VGA and 24-bit LVDS; one Type II CompactFlash; one Gigabit Ethernet; and expansion via one PCI-E x1. The NANO-8050 supports both Active Management Technology (AMT) and Trusted Platform Module (TPM), which means it can provide remote system management and enhanced security. It offers the combination of a compact form factor and low heat output while delivering high performance.

At mere 120mm x 120mm (4.72˝ x 4.72˝), the compact NANO-8050 measure only 50 percent of the standard Mini-ITX form factor and are the perfect solution for a range of low-power systems and handheld mobile devices in applications such as medical healthcare, in-vehicle infotainment, mobile kiosk, mobile gaming, digital entertainment, digital signage and portable POS.
