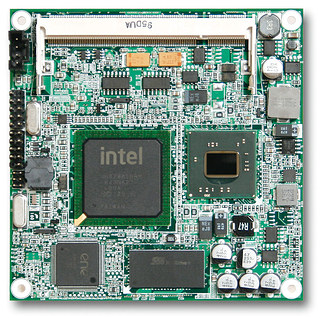

PCOM-B215VG Intel Dual-core Atom Processor based COM Express Module

Based on Intel Atom processor N450 (single core), D410 (single core) and D510 (dual core), Portwell’s PCOM-B215VG features Intel 82801HM I/O controller, up to 4GB DDR2 SDRAM, onboard 4GB NAND Flash upgradable to 8GB, one Gigabit Ethernet, dual independent display via VGA and LVDS, eight USB ports, wide input voltage support (8V to 18V) and support for EIDE and SATA. Expansion capability includes five PCI-E x1 lanes that can be configured as one PCI-E x4 and four PCI-E x1, four PCI, LPC interface and a high definition audio interface.

With its companion PCOM-C210 developer carrier board, the compact (95mm x 95mm) PCOM-B215VG Type II Compact COM Express Module is perfect for low power systems and handheld mobile devices in applications such as medical healthcare, industrial control, gaming, portable devices and COTS military market.

Portwell’s PCOM-B215VG Type II Compact COM Express module safeguards development investments and lowers total cost of ownership. PCOM-B215VG can help minimize current and future design risks. It can help development time and costs during initial phase of development, while helping to achieve a faster time-to-market, a simplified future upgrade path, scalability and an increased application lifecycle. In addition, Portwell also can provide services to customers on the carrier board design and development, review schematics and BIOS customization.
