Available from American Portwell Technology, Inc.

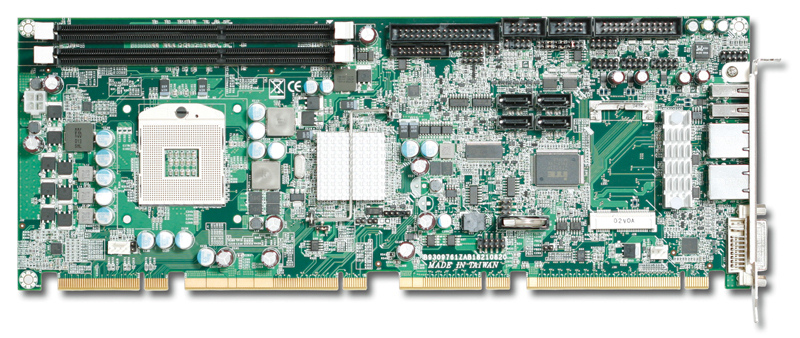

ROBO-8210VG2AR Intel Core i7/i5 Processor based PICMG 1.3 System Host Board
Aimed at customers who are seeking lower power consumption while remaining at the forefront of new technology, Portwell’s ROBO-8210VG2AR supports a choice of Intel’s latest Core i5 or i7 processor with the Mobile Intel QM57 Express chipset in a PICMG 1.3 standard System Host Board (SHB) with DDR3 SDRAM, DVI-I, Dual Gigabit Ethernet, Audio and USB. The ROBO-8210VG2AR SHB also provides legacy support for Intel Celeron processor P4500.
ROBO-8210VG2AR offers up to 8GB DDR3 1066/800 SDRAM on two 240-pin DIMM sockets; a Gen 5.75 3D graphics engine (integrated in the Intel Core i5/i7 processor); dual display via DVI-I interface; iAMT 6.0 and external TPM via TPM module; dual Gigabit Ethernet based on PCI-E x1, high bandwidth I/O interface; rich I/O connections such as FDD, two Gigabit Ethernet, serial ports, parallel port and USB 2.0; and four on-board SATA ports to support RAID 0, 1, 5, 10.
Portwell’s ROBO-8210VG2AR Core i5/i7 processor-based PICMG 1.3 SHB is the ideal solution for applications in medical imaging equipment, industrial automation and control, digital security surveillance, broadcast systems and network security.
