PCOM-B216VG-VI

PCOM-B216VG-VI

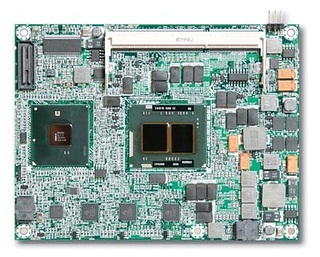

PCOM-B216VG-VI Intel Core i7 processor based COM Express module

Portwell’s PCOM-B216VG-VI is a COM Express module in a portfolio of Type VI COM Express Basic (small footprint) modules. The Type VI COM Express Basic is becoming a new standard in 2010. Portwell’s compact (125mm x 95mm or 4.92˝ x 3.74˝) PCOM-B216VG-VI is based on the Intel® Core™ i7 processor and the Mobile Intel® QM57 Express chipset. This dual-core platform supports error-correcting code (ECC) memory, and Intel Active Management Technology (Intel AMT) 6.0 and Intel Trusted Execution Technology for effective remote management and enhanced security. The PCOM-B216VG-VI also features two SO-DIMM (non-ECC) sockets to support DDR3 SDRAM 800/1066MT/s up to 8GB; one Gigabit Ethernet; expansion (via the COM Express carrier board) of one PCI-E x16 lane, which can be configured to two x8 lanes; one DVI-D, one HDMI and one Display Port (DP) interfaces, seven PCI-E x1, LPC interface and high definition audio interface; and a PCOM-C211 Developer COM Express Type VI carrier board.

Higher performance combined with low power consumption makes Portwell's PCOM-B216VG-VI the ideal solution for various applications such as retail automation, medical equipment, healthcare automation, industrial process control, portable devices, gaming machines, VoIP, COTS military and digital signage.
