RF Inductors - Surface Mount & Thru-Hole

Available from Gowanda Electronics
Product Menu
View Company Profile View all Products

Product Details

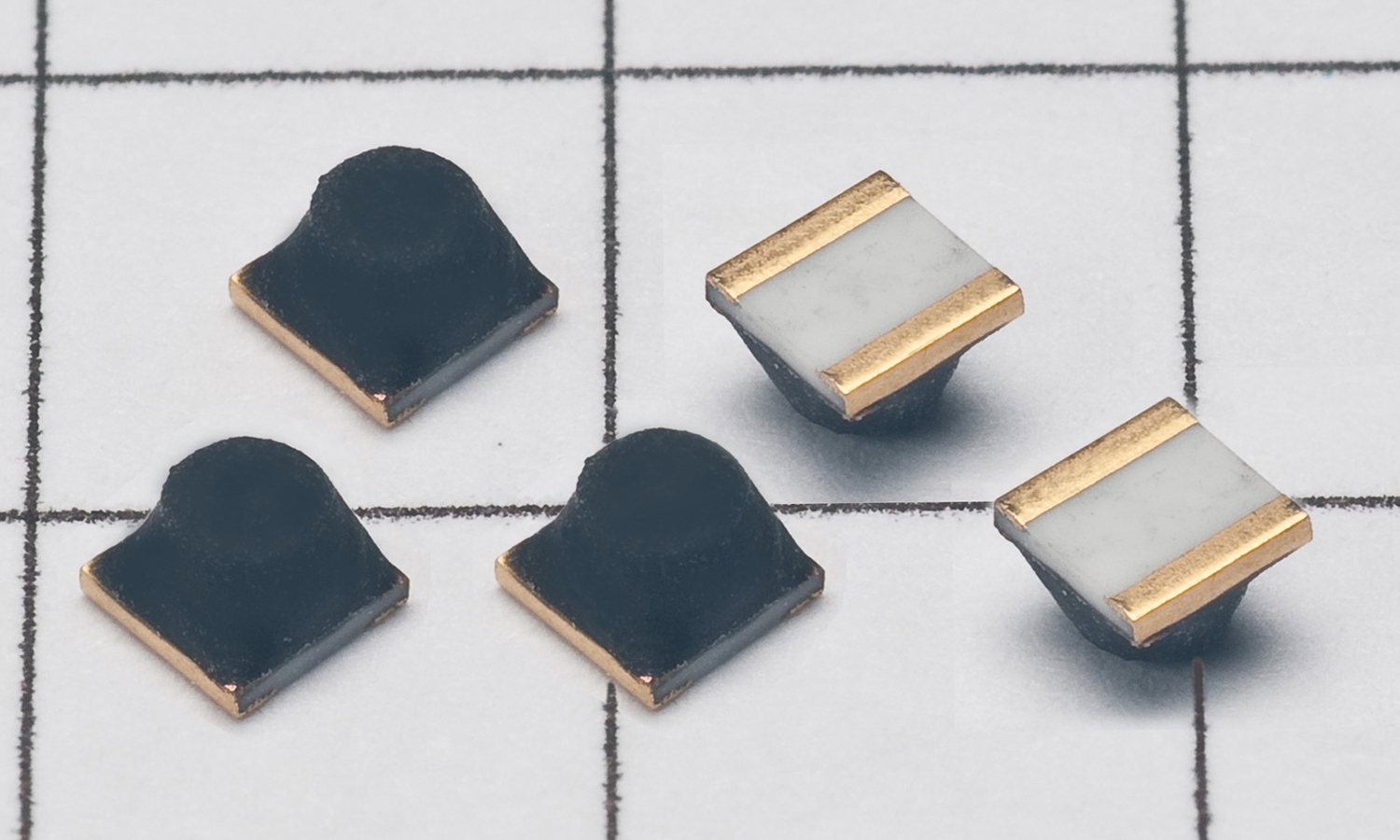

Gowanda offers a range of standard surface mount and thru-hole RF inductors. SMT designs include thin film, ceramic wirewound (open construction), ferrite wirewound (open construction), and an extensive array of other wirewound designs (epoxy coated, molded, nonmagnetic, shielded, temperature stable, tight tolerance, high L and toroidal). SMT specifications are series-dependent but represent a wide range of options: Inductance from 1 nH to 55 mH, Qmin from 10 to 75, SRF MHz min from 2.3 to 13,000, DCR ohms max from 0.019 to 175, and Current Rating DC mA from 53 to 3900. Thru-hole offerings include a variety of wirewound designs (molded, shielded, non-magnetic, and torroidal, high L, self-leaded). Thru-hole specifications are also series-dependent but represent these ranges: Inductance from 100 nH to 10 mH, Qmin from 25 to 95, SRF MHz min from 0.95 to 850, DCR ohms max from 0.025 to 95, and Current Rating DC mA from 24 to 3000. The company also offers Broadband Conical, QPL and Custom RF designs, as well as power inductors. To access all the RF products go to: http://www.gowanda.com/rf_components.asp
