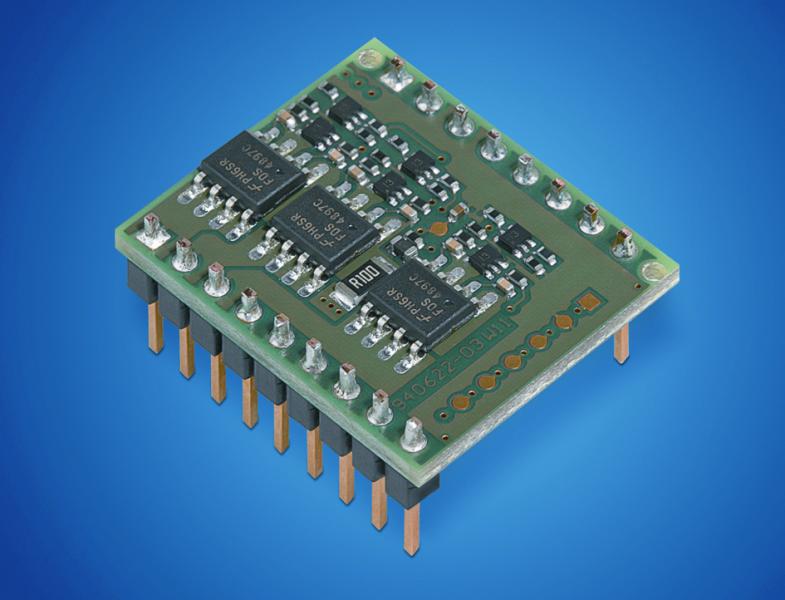

maxon's DEC Module 24/2

Available from maxon
Product Menu
View Company Profile View all Products

Product Details

Compact speed controller for brushless DC motors with Hall Sensors.

The DEC Module 24/2, a digital 1-quadrant amplifier with speed controller for brushless EC motors with Hall Sensors up to 48 Watt.

The well-priced, miniaturized, powerful plug-in module can be seamlessly integrated into most complex applications with little effort. Now, the customer can fully focus on developing their own device – while being able to take full advantage of maxon motor’s vast drive know-how that comes along with the module. Additionally available are a comprehensive Motherboard Design Guide to assist OEMs in their circuit board design as well as a detailed Evaluation Board for the use during initial starting up.

The wide supply voltage range of 8…24 VDC (alternatively 5 VDC) with a continuous output current of 2 A permits flexible, multifunctional operation at a high efficiency factor. The amplifier offers a large number of inputs and outputs and comprehensive protection features.

The amplifier is designed for a maximum motor speed of 80 000 rpm (1 pole pair).
Two connector arrays arranged in a 2.54 mm (0.1“) pattern support easy connectivity and integration into the OEM-side motherboard.

Miniature size, high performance, attractive price, extensive protective functions, simple integration; And, all of the above on a surface area of less than 5 cm2, which approximately corresponds with the size of a postage stamp.
