Revolutionary and robust - the MILE encoder
Available from maxon precision motors, inc.

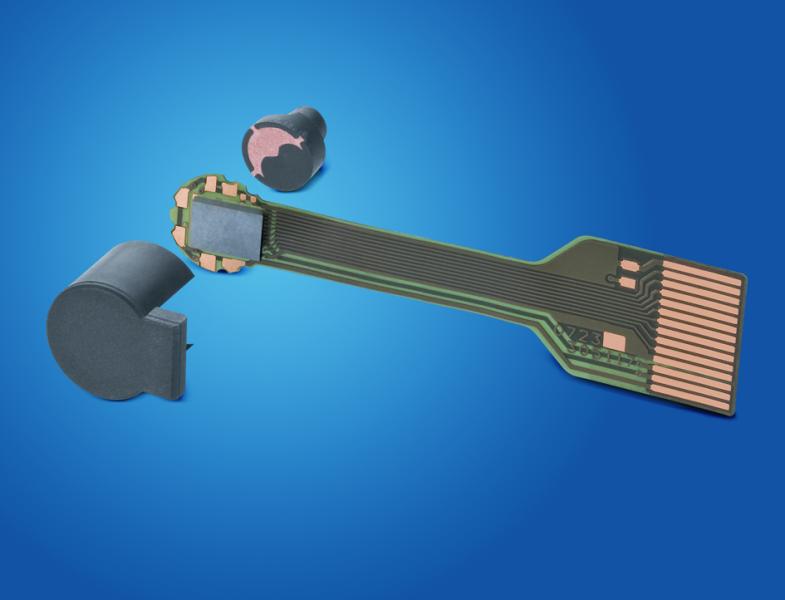

maxon motor unveils the world’s smallest inductive encoder.
maxon motor’s inductive micro encoder is a milestone in encoder technology. Secure against the effects of EMC, dust or oil, it has a configurable index pulse and integrated commutation signals. And it's diameter is just 6mm.
The general basis of inductive encoders is that the inductance of one or more coils changes in relation to the material used. However, there are drawbacks to simple inductive encoders, such as the temperature dependence of the soft iron/ferrite. External magnetic fields can also change the permeability of the material used, well below saturation point.
This is why highly accurate inductive encoders are ironless. The contrast is generated with eddy currents. These encoders have long been featured in large motors, but have not been produced for micromotors until now. maxon motor has invested heavily in the development of these greatly miniaturized inductive encoders. The result is the MILE, an inductive encoder where the contrast is generated with eddy currents. maxon's Inductive Little Encoder is the smallest of its kind in the world.
The new MILE encoder delivers 64 pulses at up to 120000 rpm, has 3 channels, line driver and integrated commutation outputs. Typical areas of application are medical technology, robotics and industrial applications in harsh environments. The MILE is available in combination with the EC6 brushless motor extending the length of the combination by 1mm.
