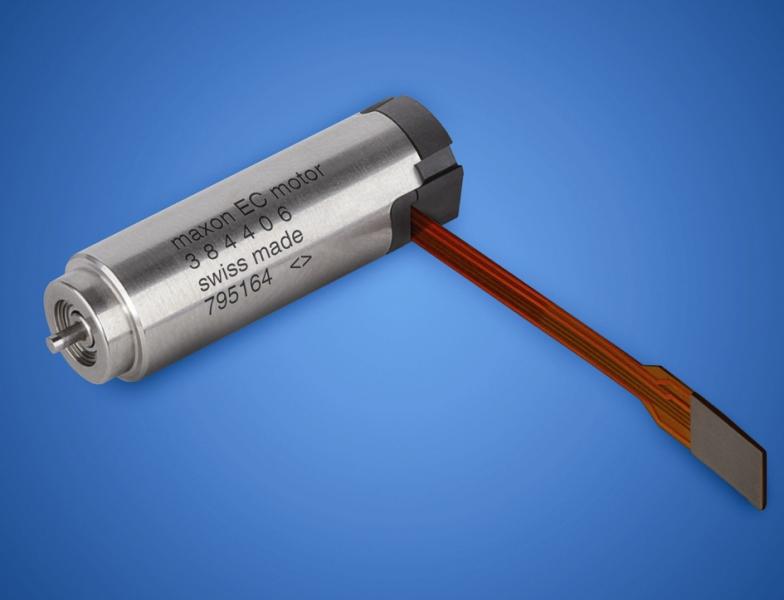

maxon's Brushless EC 8 motor

Available from maxon

A tiny drive with a big impact.

maxon’s new brushless dc motor offers continuous current up to 0.95 mNm, nominal speed up to 80,000 rpm and an exceptional efficiency rating of 70%.The motor is available with or without Hall sensors and with 6 V, 12 V and 24 V windings. It can be combined with the planetary gearhead GP 8A. 1-quadrant amplifiers serve as controllers; the DEC 24/1, directly connected via flexprint and the DEC Module 24/2, a miniature plug-in module.

This motor was produced according to the most rigid Medical Standard ISO 13485 and is ideal for a variety of applications such as sampling robotics, portable analyzers, metering systems, instrumentation or inspection robots.
