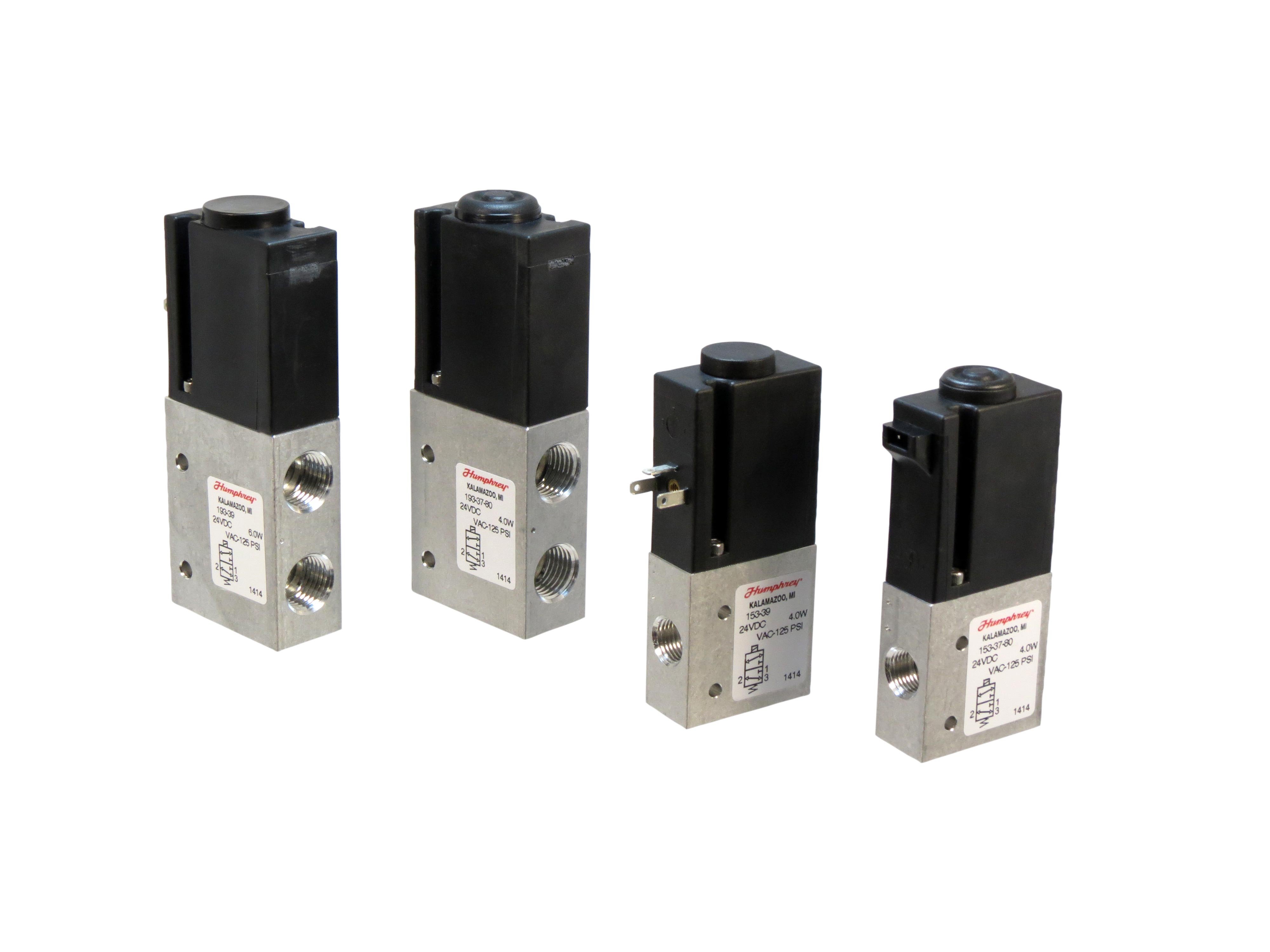

Balanced Solenoid Valve Series
Available from Humphrey Products Corporation
Humphrey is expanding the Balanced Solenoid Valve Series by adding to the existing 15mm (153) model, a 19mm (193) model that offers the same great benefits with a higher flow (Cv: 0.5). The universal balanced designed valves offer several benefits:
MULTI-PURPOSE. The 153/193 Series is versatile with its many functions: Normally Closed or Normally Open; 2- or 3-way; Diverter or Selector; pressure range of vacuum to 125 PSIG.
MULTI-MEDIA. The 153/193 Series’ balanced poppet design performs whether the media is air or inert gases, clean, dry, lubricated, or contains some airline impurities.
RELIABLE SHIFT, TIGHT SEAL. Internal forces generated by the pressurized media are neutralized. The shifting forces of the coil and return spring are optimized and need only seal the poppet to our tight leakage specifications.
HIGH FLOW CAPACITY. Internal flow path management has been maximized. Coupled with the balanced design and an optimized solenoid magnetic circuit, significantly greater flow, within a reduced overall size, has been achieved.
EASE of USE. All electric and pneumatic connections are on opposing surfaces, minimizing total space occupied, and simplifying mounting and connections during installation.
