L SERIES

Available from Smiths Interconnect

High Density Modular Connector
-Mixed signal, power, and coaxial modules
-Provides up to 200 amp power
-Cable to chassis and rack & panel
-Plastic backshell with strain relief and half turn quick disconnect jackscrew
-Float mountable for blind mating
-Configurations compliant to EN45545 standards

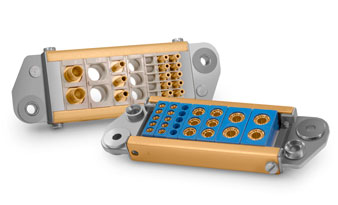

L Series Connectors are high density, modular, rack & panel connectors that include coax and high current contacts up to 200 amps, as well as the patented Hot Plug contact. The L series is used in high demanding of applications where the environment requires durability, ruggedization and extended operating life.

Utilizing the Hypertac® contact technology the interconnects offer high mating cycles (up to 100,000) combined with low insertion and extraction mating forces, as well as unsurpassable immunity to shock and vibration.

This modular building block system enables for custom connectors with large numbers of contacts to be configured in to a single frame. Therefore, the user is capable of selecting and customizing the connector to meet the exact requirements with off the shelf components and shortened lead times.
