HYPERGRIP

Available from Smiths Interconnect

HG0, HG2, HG3, HG4
-5, 12 19 and 33 contact positions
-1 A per contact
-IP67 sealed when mated
-EMI/RFI shielding option
-Push/pull latching design
-Ideal for disposable applications
-6 Keyable positions, 5 color options

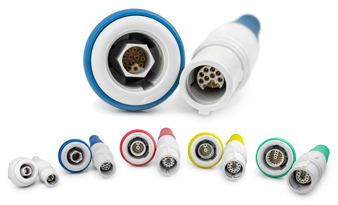

Designed specifically for the medical industry, HyperGrip is a circular plastic, user-configurable, color coded connector that is customer keyable for quick and accurate connections on medical equipment. This unique HyperGrip keying system allows customers greater freedom and diversity to build connectors with six different keying options from a set of common components, thereby reducing cost, lead time and inventory.

All HyperGrip sizes include an option for IP67 level sealing protecting the product when immersed temporarily in water to a depth of 1 meter for up to 1 minute. Also unique to HyperGrip is the front or rear panel mount receptacle design which allows the user to mount the harness assembly from inside or outside of the device enclosure. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94 V0, and is compatible with most sterilization requirements.

HyperGrip offers more configurations, including connectors with 5 (HG0), 19 (HG3) or 33 (HG4) Hypertac pin positions to complement the growing 12 pin position connector (HG2).
