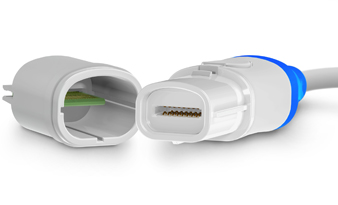

ECLIPTA – ECL SERIES
Available from Smiths Interconnect
Edge Card Connectors
-Eclipta Edge Card Technology
-High Mating Cycle Life
-Plug & Play Design
-Quick, Intuitive Mating
Eclipta connector series addresses the medical market need for a reliable interconnect system with short lead-time and minimal cost. Eclipta easy assembly and high density interconnect design make it ideal for use with mapping and ablation cathethers, RF generators, home healthcare devices, value medical systems and many other disposable medical devices.
Eclipta connector incorporates an innovative, double-ended, edge card contact system featuring a PCB as the contact on the disposable connector side. This eliminates the cost of the contact system on that side. In addition, its plug and play design provides effortless termination and virtually eliminates the potential contact damage associated with the termination process.
Additional benefits include mass termination of catheter wires directly to the PCB in the disposable and reusable sides, scalability, customization, and the possibility to be re-worked on the reusable side.
